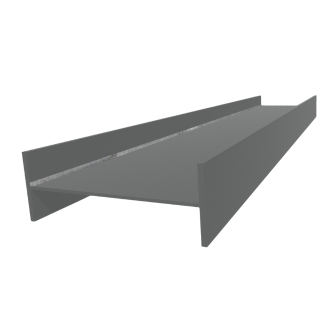

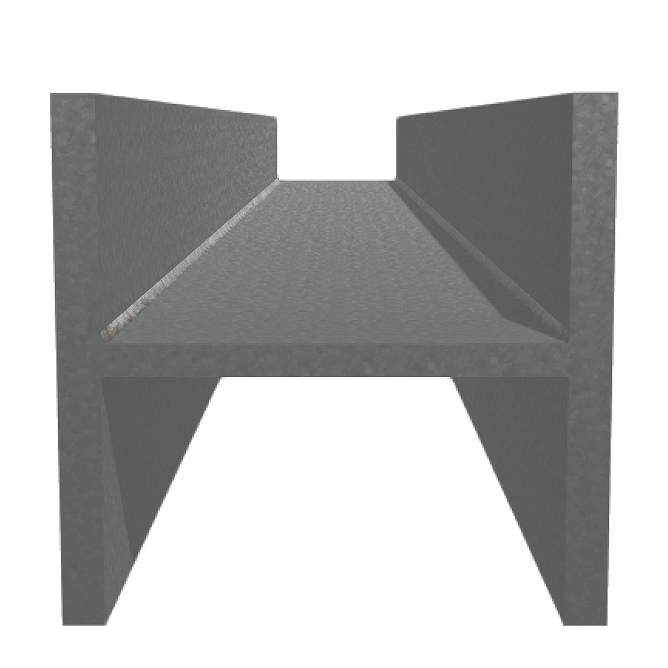

Welded Beams
A welded steel beam is a strong, custom-made steel support used in construction. Built by welding steel plates together, it’s designed for maximum strength and efficiency, making it perfect for buildings, bridges, and heavy-duty structures.
| Depth of Section D mm |
Width of Flange B mm |
Thickness of Flange T mm |
Web Thickness t mm |
Weld Size R mm |
Depth between Flanges d mm |
| 1200 | 500 | 40 | 16 | 8 | 1120 |
| 1192 | 500 | 36 | 16 | 8 | 1120 |
| 1184 | 500 | 32 | 16 | 8 | 1120 |
| 1184 | 400 | 32 | 16 | 8 | 1120 |
| 1176 | 400 | 28 | 16 | 8 | 1120 |
| 1170 | 350 | 25 | 16 | 8 | 1120 |
| 1170 | 275 | 25 | 16 | 8 | 1120 |
| 1024 | 400 | 32 | 16 | 8 | 960 |
| 1016 | 400 | 28 | 16 | 8 | 960 |
| 1010 | 350 | 25 | 16 | 8 | 960 |
| 1000 | 300 | 20 | 16 | 8 | 960 |
| 924 | 400 | 32 | 12 | 6 | 860 |
| 916 | 400 | 28 | 12 | 6 | 860 |
| 910 | 350 | 25 | 12 | 6 | 860 |
| 900 | 300 | 20 | 12 | 6 | 860 |
| 816 | 300 | 28 | 10 | 6 | 760 |
| 810 | 275 | 25 | 10 | 6 | 760 |
| 800 | 275 | 20 | 10 | 6 | 760 |
| 792 | 250 | 16 | 10 | 6 | 760 |
| 716 | 275 | 28 | 10 | 6 | 660 |
| 710 | 250 | 25 | 10 | 6 | 660 |
| 700 | 250 | 20 | 10 | 6 | 660 |
| 692 | 250 | 16 | 10 | 6 | 660 |
